Portable, battery-operated cutting ring assembly machine type SPR-PRC-M from STAUFF
Product Specialist for Assembly Machinery
Any questions about the products on this page? Get in touch now!
Reduce assembly times and cost
The new standard for the machine-assisted assembly of cutting ring tube connectors and fittings during maintenance, servicing, conversion and repair works on hydraulic pipe and tube systems – in medium and even small quantities.

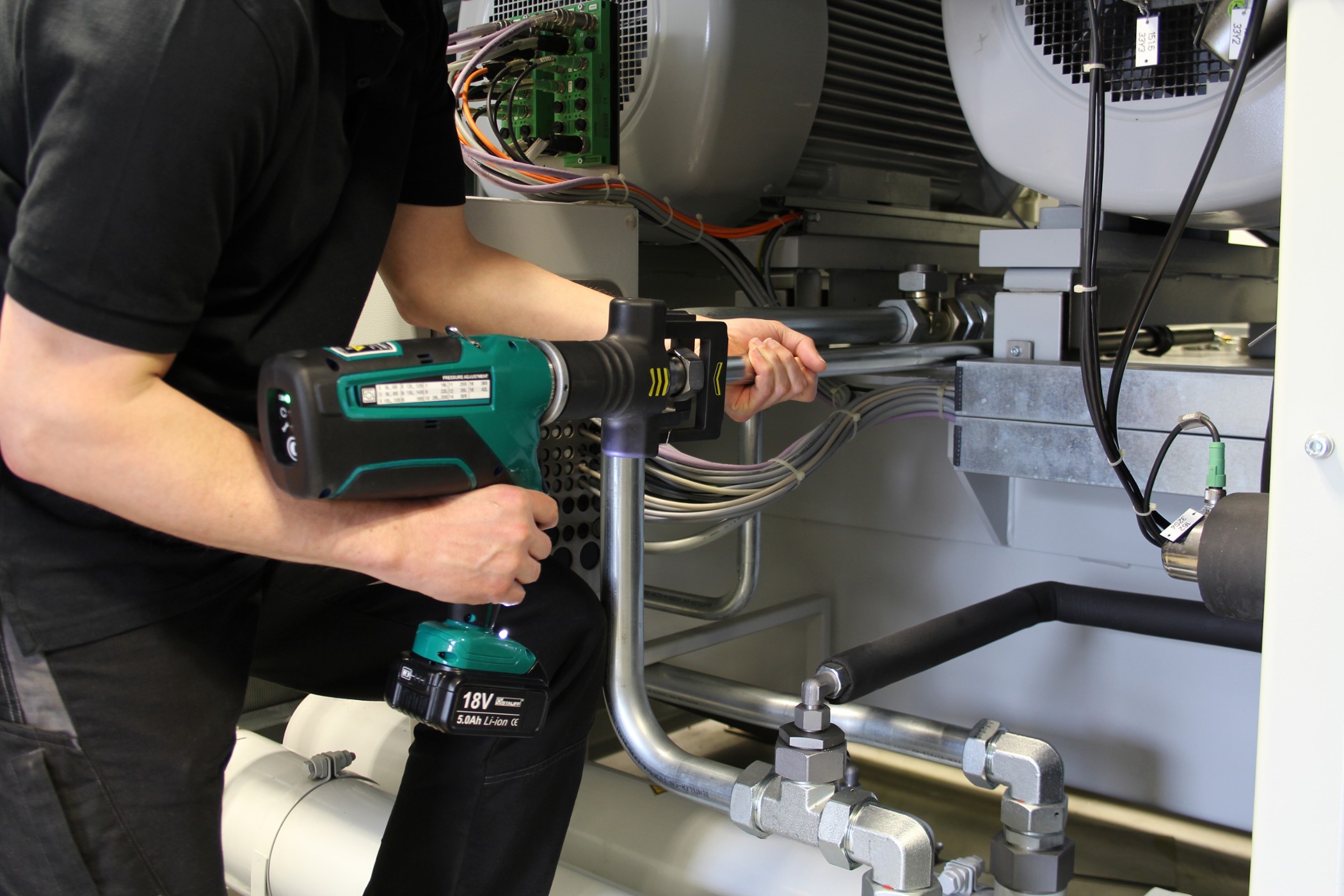

With the battery-operated STAUFF Press Assembly Machine SPR-PRC-H-M, STAUFF provides an ergonomically designed, light-weight and at the same time robust device for the assembly of cutting rings according to ISO 8434-1 / DIN 2353 on metric tube ends with all commonly used outer diameters:
- Light Series (L): 6, 8, 10, 12, 15, 18, 22, 28, 35 and 42 mm
- Heavy Series (S): 6, 8, 10, 12, 14, 16, 20, 25, 30 and 38 mm
Considerable reduction of time and cost for the assembly of cutting ring fittings
The machine has been designed for hand-held, tripod-mounted or table-mounted operation and offers the best technical compromise between maximum flexibility, economic efficiency and a high level of process reliability with considerable reduction of time and cost for the assembly of cutting ring fittings.
Also suitable for mass processing and production
Short tool change and setup times (with only a few seconds required to manually adjust the assembly pressure) make it possible to carry out the assembly of medium and even small quantities of cutting ring fittings, e.g. during maintenance, servicing, conversion and repair works on hydraulic pipe and tube systems. With the rechargeable battery being able to typically cover more than 200 assembly cycles per charge (depending on pressure settings and other influencing factors), the machine is also suitable for mass processing and production.
Advantages from the user's perspective at a glance
- Uniformly high quality of assembly results without fluctuations
- Reduced assembly time and costs compared to manual processes
- Significantly less effort required for the assembly
- Can be used independently of an external power supply
- Also suitable for confined spaces during assembly
- Simple, quick and intuitive to learn
- Lightweight, portable and thus highly flexibble to use
- Extensive range of accessories available

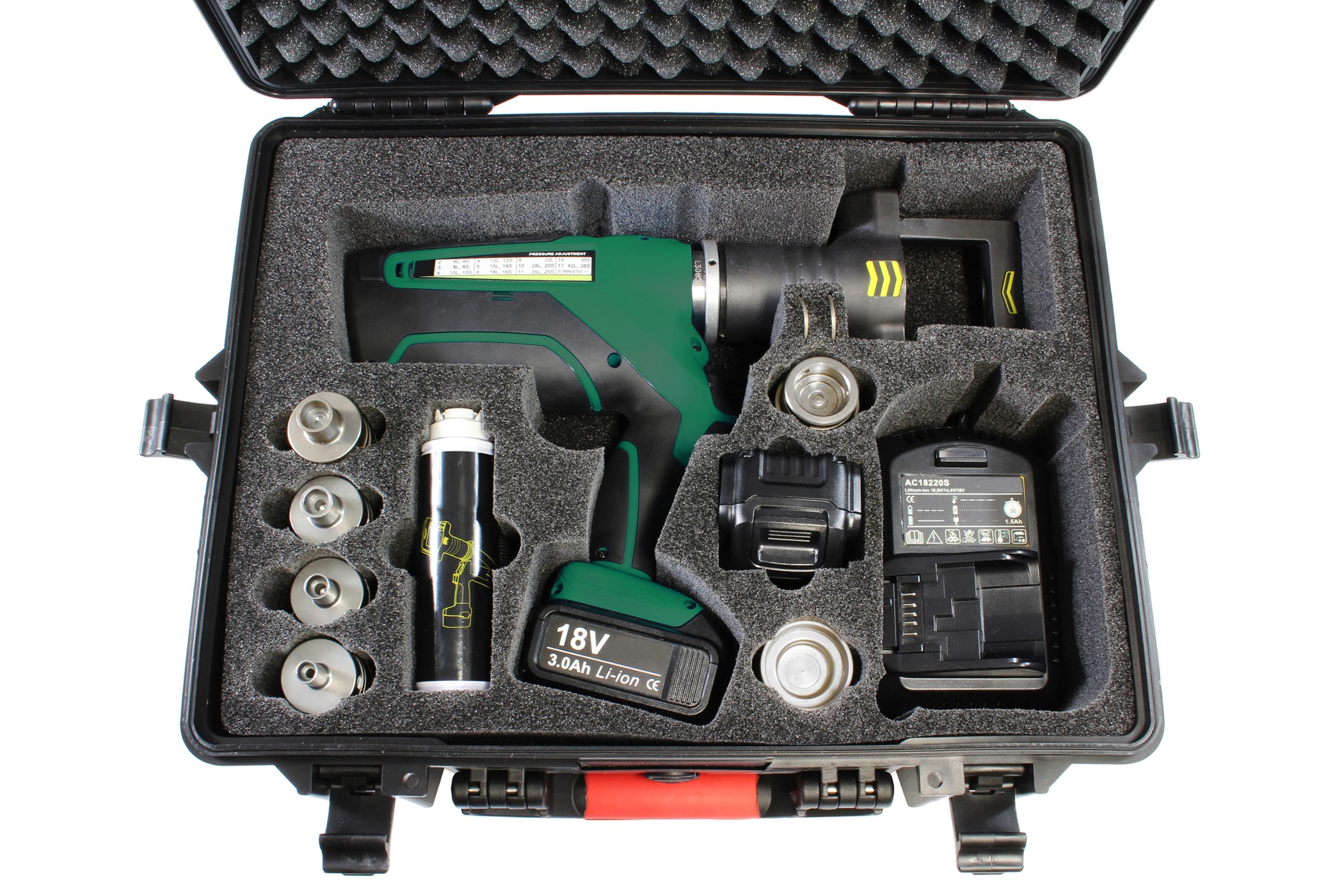

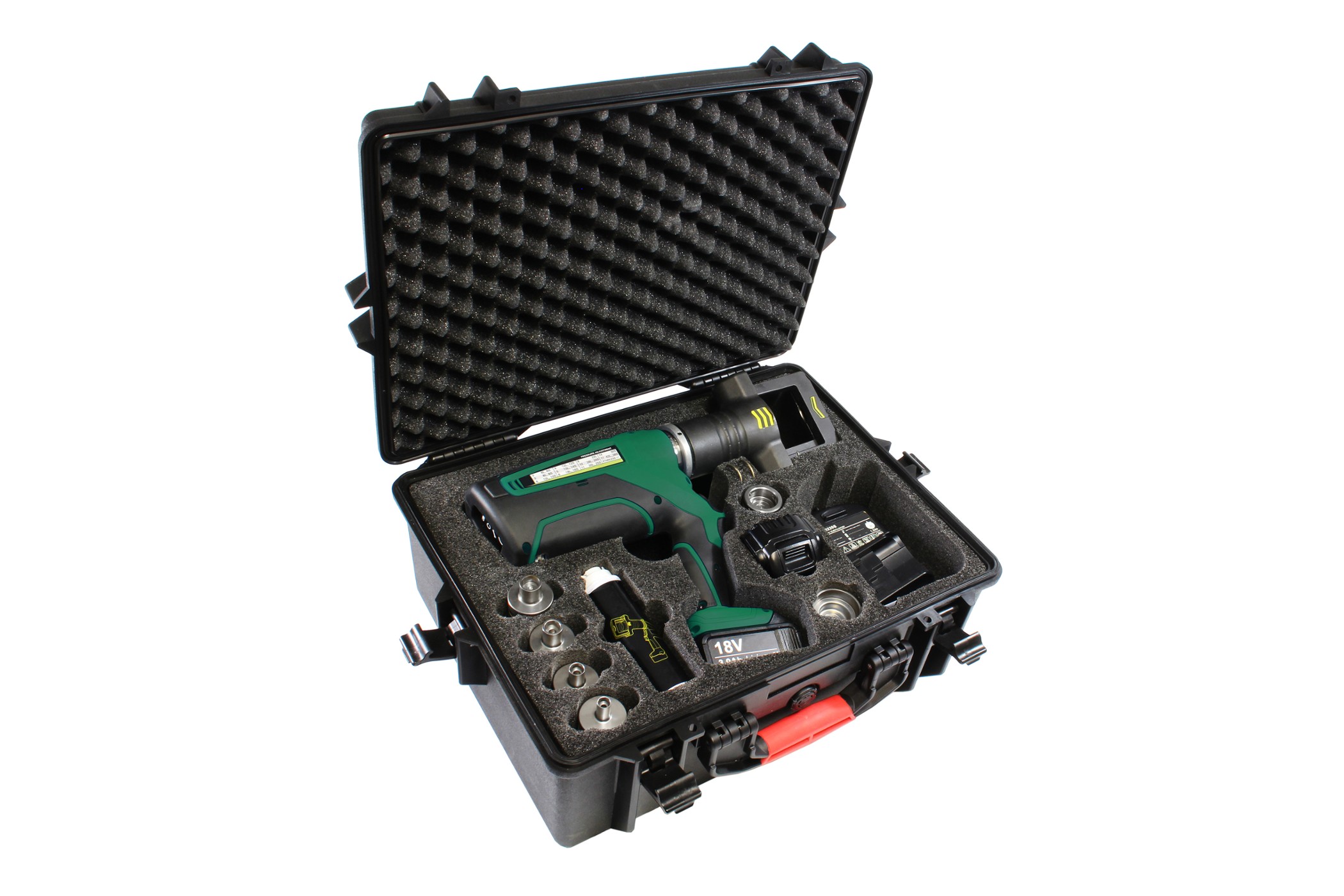

The assembly machine is by default provided as a complete set in a robust heavy-duty trolley transport case, which already includes a range of individual components:
- Rechargeable battery SPR-PRC-H-M-BP
- Second rechargeable battery SPR-PRC-H-M-BP
- Battery quick charging unit SPR-PRC-H-M-BC
- Clips SPR-PRC-H-M-S
- Shoulder strap
The transport case also provides enough space for the following essential components, which can be ordered separately:
- Cutting ring assenbly studs FI-MVK-PRC-H-M-HR for the outer diameters as required
- Assembly oil SPR-PRC-H-M-OS
The following accessories are also available, if required:
- Tripod stand SPR-PRC-H-M-TP
- Table stand SPR-PRC-H-M-TS
- Mounting bracket SPR-PRC-H-M-MH
Spare parts available include:
- Heavy-duty trolley transport case SPR-PRC-H-M-CW
- Rechargeable battery SPR-PRC-H-M-BP
- Battery quick charging device SPR-PRC-H-M-BC
- Clips SPR-PRC-H-M-S
STAUFF recommend to use cone gauges to regularly check the wear of assembly tools.
Further information required?
Just one click away: Technical data and lots of additional details about the portable cutting ring assembly machine type SPR-PRC-M and the extensive range of accessories available from STAUFF can be found in the STAUFF online page-flip catalogue.
