Universal tool for workshops, warehouses or sales counters allowing quick and easy determination of common thread types and sizes,
Product Specialist for Pipe, Tube and Hose Connectors
Any questions about the products on this page? Get in touch now!

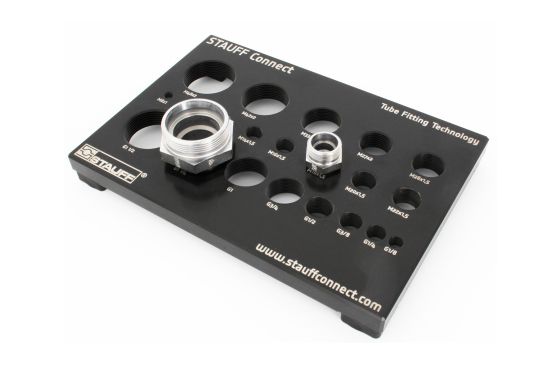

STAUFF Thread Identification Boards are intended to be used as a universal tool for workshops, warehouses or sales counters allowing quick and easy determination of common thread types and sizes, e.g. for male stud tube connectors and test couplings.
The boards are available in two different versions:
- Version FI-TIB-M/G for the determination of 13 different Metric Parallel Threads from M8 x 1 to M48 x 2 and of 8 different Whitworth Parallel Pipe Threads from G1/8 to G1 1/2
- Version FI-TIB-N/U for the determination of 8 different NPT threads from 1/8–27 NPT to 1 1/2–11.5 NPT and of 9 different UN/UNF threads from 7/16–20 UNF to 1 7/8–12 UN
STAUFF Thread Identification Boards are covering all relevant thread type and sizes of male stud tube connectors and test couplings. They made of hardened quality steel and finished with an extremely resistant cathodic electrodeposition coating. Laser markings next to the threaded ports indicate the thread types and size. Non-slip rubber feet provide good stability of the Thread Identification Boards on the workbench or counter.
