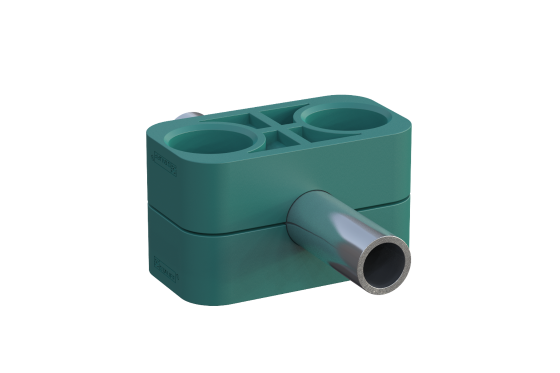

Tube and Pipe clamps from STAUFF

tube and pipe clamps fulfil a key function in industrial systems: they reliably secure and guide pipelines while also providing effective vibration damping. They therefore make a significant contribution to protecting pipes from the typical stresses that occur in such environments - including pressure surges, vibrations, strong temperature fluctuations and various mechanical effects.

STAUFF tube and pipe clamps fulfil these tasks with high precision and reliability. They offer pronounced vibration and noise-damping properties, impress with their robust design and long service life and guarantee excellent corrosion protection thanks to the high-quality zinc/nickel surfaces. The range includes a large selection of different materials and sizes as well as standardised versions in accordance with DIN 3015, covering diameters from 6 to 450 mm - and even larger diameters on request.

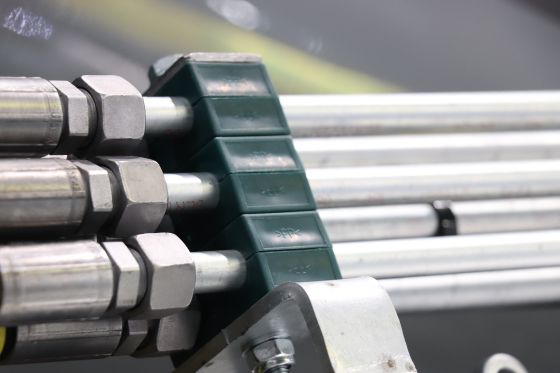

The standard series in accordance with DIN 3015-1 is the first choice for most classic applications and is ideal for hydraulic lines, general mechanical engineering, process systems and numerous other industrial applications. It is characterised by its universal applicability and a particularly large selection of available pipe diameters. Thanks to the large number of mounting variants, the series can be flexibly adapted to a wide variety of installation situations.

Another key advantage is its excellent vibration damping capability, which contributes to low-noise pipework and a long-lasting installation. The robust components, which have been tried and tested for decades, are also very easy to install and enable efficient, secure and professional pipe fastening - even under demanding operating conditions.

Choosing the right clamp body is crucial for the safety, durability and function of the fastening. Two aspects play the main role here: structure and material.

Structure - suitable for the application

• Ribbed clamp bodies with pre-tensioning: ideal for fixed pipe fastening without movement play

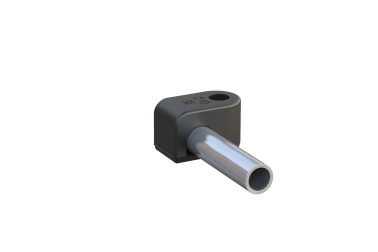

• Clamp body with elastomer insert (RI): additional vibration and noise damping for vibrating systems

Materials - depending on the environment

STAUFF offers different materials for different requirements:

• Polypropylene PP - universal, chemically resistant

• Polyamide PA - robust, abrasion-resistant solution for mechanically demanding environments

• Aluminium - maximum stability for heavy industry and high-pressure pipes

• Damping elastomers (e.g. TPE materials) - for vibration absorption

• Metal parts made of mild steel in bright or oiled finish or with phosphate coating (W1 / W2) - ideal for welding on

• Metal parts made of mild steel with high-performance STAUFF zinc/nickel surface (W3) - for maximum bearing life and optimum corrosion protection

• Stainless steel metal parts (W4 / W5) - maximum corrosion resistance for marine and chemical applications

STAUFF offers a comprehensive modular system for the installation of tube and pipe clamps, which enables secure, flexible and customisable fastening. The individual accessory components can be combined on a modular basis and allow almost any installation situation to be reliably covered - from simple tube fastenings to complex multi-line arrangements in industrial systems.

The most important fastening components include

• Welding plates / base plates / base plates
  They form the fixed base for tube and pipe clamps and are welded directly onto machine frames, steel structures or system components. Ideal for permanent, heavy-duty fastenings.

• Cover plates
  They securely fix the clamp body from above and, together with screws, ensure that the pipe system is held firmly in place. Variants for standard, double or heavy-duty applications enable optimum adaptation to the respective series.

• Screws and locking elements
  Various types of screws, nuts, washers and other locking elements ensure a form-fit, vibration-proof connection of the clamp components - in steel, zinc/nickel or stainless steel, depending on requirements.

• Rail systems and adaptors
  Mounting rails and matching adaptors are suitable for particularly flexible installations or installations that can be changed at a later date. They allow clamps to be quickly positioned, moved or extended without the need for additional welding work.

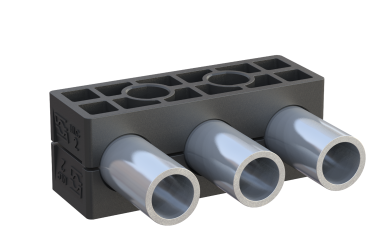

The combination of these elements creates a highly variable and expandable fastening system that easily supports both simple individual installations and sophisticated designs with multiple cables, changing distances or tight installation positions.

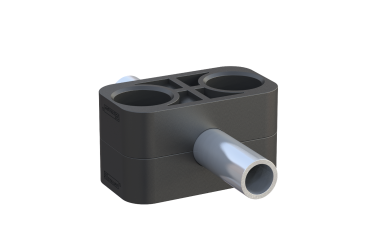

Whether standard, light, heavy or special customised solutions - STAUFF offers the right fastening system for every application. Customers benefit not only from a broad product portfolio in accordance with international standards, but also from comprehensive support throughout the entire project planning and realisation process.

The key service and quality features include

• Personalised advice
  Expert support in selecting the right clamp series, materials and fastening concepts - tailored to industry requirements and operating conditions.

• Fast delivery times
  Large stocks and efficient logistics ensure that standard and special products are available at short notice.

• Highest manufacturing quality
  Precisely manufactured components made from high-quality materials guarantee a long service life and maximum operational reliability.

• Customised solutions
  Customised special designs for special diameters, special environmental conditions or individual design specifications.
